VENETIAN BLINDS AND EXTERNAL ROLLER BLINDS (SCREENS)

SKYFLOW

VENETIAN BLINDS

SkyFlow venetian blinds are an example of a solution, which effectively protects the interior from excessive heat, while providing adequate optical comfort. One of the unquestionable advantages of this product is free adjustment of the angle of slats, which allows to choose the right degree of shading and thus individual management by the user. The well-considered construction also allows to create larger dimensions of the structure, which makes them often used for large glazing. As a result, the blinds are perfect for both public buildings and residential investments.​​

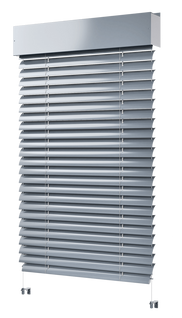

M2_01f02-1 (1).jpg

The product is available in four variants, depending on the installation method:

  • the under plaster version SkyFlow SZF/BX was designed mainly for easy and quick installation in newly built buildings. The cover box is a ready-made element and is made of bent aluminium sheet;


  • the under plaster version SkyFlow SZF/P is dedicated for installation in new buildings or existing buildings, it is possible to hide structural elements under the façade;


  • the self-supporting version of the venetian blind SkyFlow SZF/S has been designed mainly for façade installation in buildings with large glazing. The load-bearing element of the system are the guide channels that transfer the entire weight to the façade columns;


  • the adapting version SkyFlow SZF/A is designed for installation on the façade or window recess in already existing facilities. It enables the division of blinds by means of a double guide channel.


FUNCTIONALITY AND AESTHETICS

there are 3 variants of the system available: ZIP, CLASSIC and ECO, tailored to the needs of the investor

​

  • the first screen system available on the market, which uses a cap solution that can be locked in the closed position for easy assembly, disassembly and service access​

​

  • thoughtful design of the Zip variant makes the fabric not only roll up on the round reel but also on the adapter when closing, which ensures better winding​

​

  • the use of a zipper mechanism, in the SkyRol Zip variant, makes it possible to integrate the fabric directly into the guide channel, which ensures wind resistance and guarantees maximum tightness

​

  • the use of ALU-CLICK mechanism in SkyRol Eco allows for comfortable and simple manual operation


  • 3 installation options: adapting, under plaster and top-mounted


  • the top-mounted box contains thermal insulation that minimises the formation of thermal bridges. As the only solution on the market it also offers an insulation of the end caps.

SKYROLL

MB-TT50

The MB-SR50N ZS solution is designed with a view to object-oriented projects, combining the SkyFlow facade blind system with Aluprof’s mullion-transom curtain walling system MB-SR50N. Special pressure plates have been designed for the columns to allow the installation of the façade filling and decorative caps, which at the same time serve as a guide channel for the blind.

  • there are two types of pins available in the offer: steel (durable and resistant) and PVC (minimizes noise that may arise during wind)

​

  • slats made of shaped aluminium sheet and are available in two shapes: C and Z. Stiffness and wind resistance is guaranteed in the case of blinds slats profiled in the shape of the letter C and their double-sided folding inwards. In addition, their rotation range is from 0 to 180 degrees. The slats in the shape of the letter Z are designed to provide complete shading and are additionally equipped with a special soundproofing seal. Their rotation range is from 0 to 90 degrees.

​

  • the guide channels, the only solution of this type available on the market, are equipped with special seals eliminating the noise that can arise when the slat hits the guide channel

​

  • the textile elements of the blind (ladders and straps) are made of high quality polyester and they are thermally fixed, which guarantees high resistance to weathering, stretching, abrasion, as well as UV rays and the appearance of mould.

​

  • the string ladder is arranged in the shape of the number 8 during rolling, so that it does not become entangled between the slats, ensuring smooth retraction

​

  • two variants of the bottom bar: complete and open

​

  • possible installation of the guide channel in the case of the under plaster blind version

FUNCTIONALITY AND AESTHETICS
